EMG Control electronics
EMG has many years of experience and expertise in the development and application of modern control electronics. Our know-how covers the entire performance spectrum of modern control electronics - from in-house hardware development and software programming to competent application advice for our customers. With the intelligent control system EMG iCON® we offer a series for all applications - including a comfortable graphical HMI with touch function (EMG iCON® VS).
EMG iCON® family
EMG iCON® XE
- usable in all types of EMG strip guiding and EMG quality assurance systems
- 10 digital inputs
- 10 digital outputs
- 4 analogue inputs
- 3 analogue outputs
- final amplifier for servo valve
- power supply for sensors

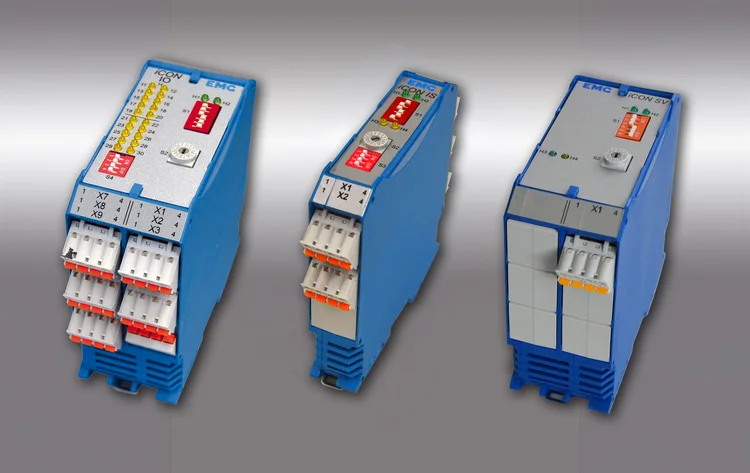

EMG iCON® Extension modules
- EMG iCON® IO – Input/Output
- identical analogue and digital in- and outputs as EMG iCON® XE
- EMG iCON® IS – Incremental/SSI
- evaluation of incremental sensors and/or SSI sensors on 2 channels
- EMG iCON® SV – Servo valve
- for all double-stage servo valves
- final amplifier with underlaid control loop
- analogue input for position encoder as feedback of the main stage
EMG iCON® VS
- touch screen with intuitive user surface
- languages are switchable online
- alert management/alert list included
- housing for mounting in cabinet door or mounting in cabinet
- ambient temperature: 0...+50 °C
- protection class: IP66 front
- Display
- 1024 x 600 pixel
- 7“ TFT
- dimmable LED
- 16 million colors
Customer benefits
Perfect for these industries
Further strip guiding solutions

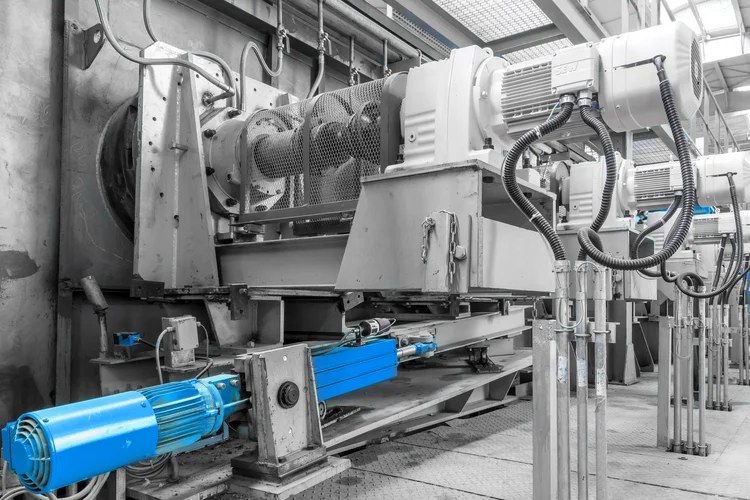

As a rule, a strip guiding system consists of a selection of electronics in combination with the following components:
Electronics form the heart of every control system. With its modular design, the EMG-iCON® family offers tailor-made solutions for all requirements.
Jens KatholProduct Manager for Strip Guiding Solutions
