EMG BREIMO
EMG BREIMO is the solution for you: compact, accurate and reliable, the system integrates easily into your line – and is as easy to operate as you could wish for.
Because precise measurement should be simple.
Function principle

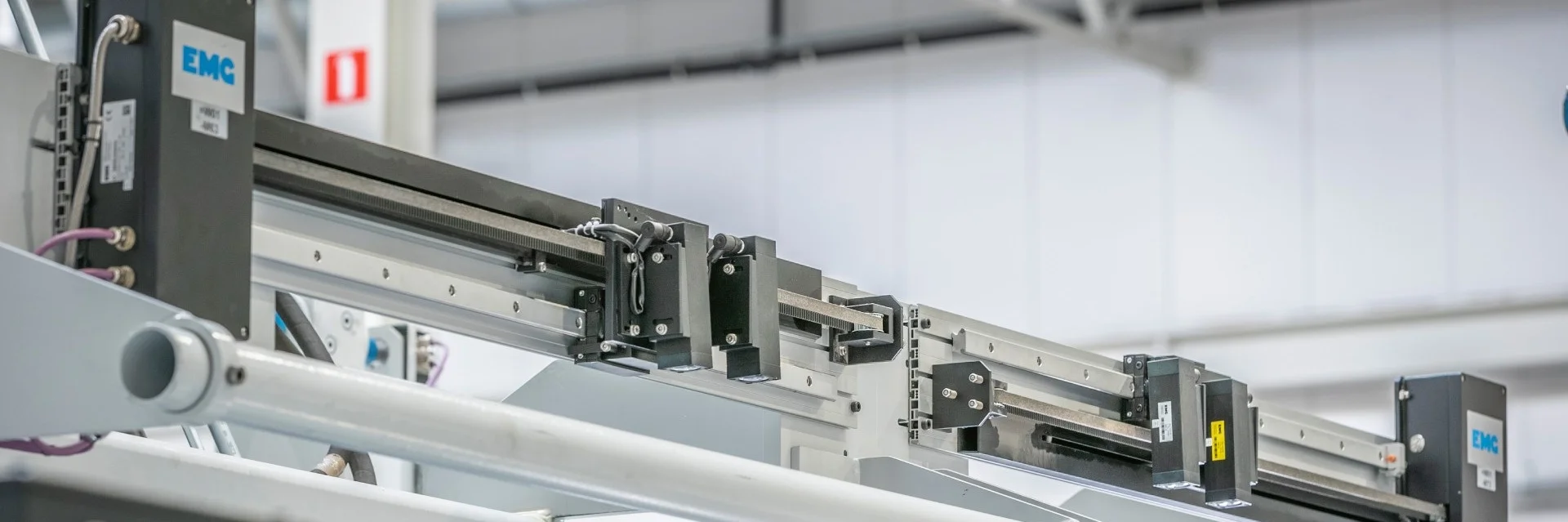

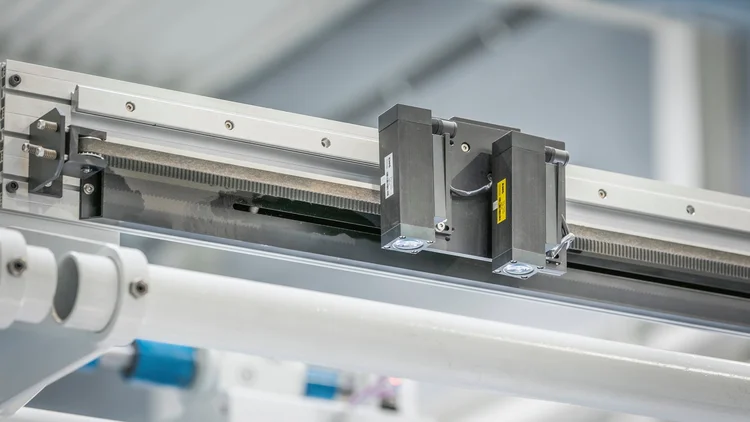

EMG BREIMO is the non-contact, optical strip width measurement of steel strips in a continuously running process. It consists of a measuring frame with two strip edge sensor positioners (EMG EVK), the associated light transmitters (EMG LLS) and a common linear stroke transducer.
EMG BREIMO is a highly reliable strip width measurement system that offers all the advantages of the EMG EVK, e.g. robustness against external interference. Changes to the strip edge position are continuously detected and taken into account when calculating and displaying the strip width.
Technical details
- Measuring range: 300 - 3,000 mm
- Measuring accuracy: +/- 0.5 mm (BREIMO); +/- 0.2 mm (BREIMO-H)
- Strip height variation: < +/- 20 mm (BREIMO); < +/- 10 mm (BREIMO-H)
Customer benefits
- More efficient processes
- Saving resources
- Precise and reliable measurement accuracy
- High availability
- Minimum installation space
- High economic efficiency
- Ease of use
- State-of-the-art fieldbus technology
- Stable, ready-to-install measuring frame according to individual customer requirements
- Short commissioning time
- Fast and convenient calibration
- Minimisation of trimming scrap (in combination with EMG SWOp)
Further EMG solutions
With its optical sensors, EMG BREIMO delivers precise strip width measurement, remains reliable against extraneous light and scores with a large sensor gap – numerous successful references confirm its enormous performance.
