EMG IMPOC
As results you'll get less waste, fewer complaints – greater efficiency and quality.
Measuring principle

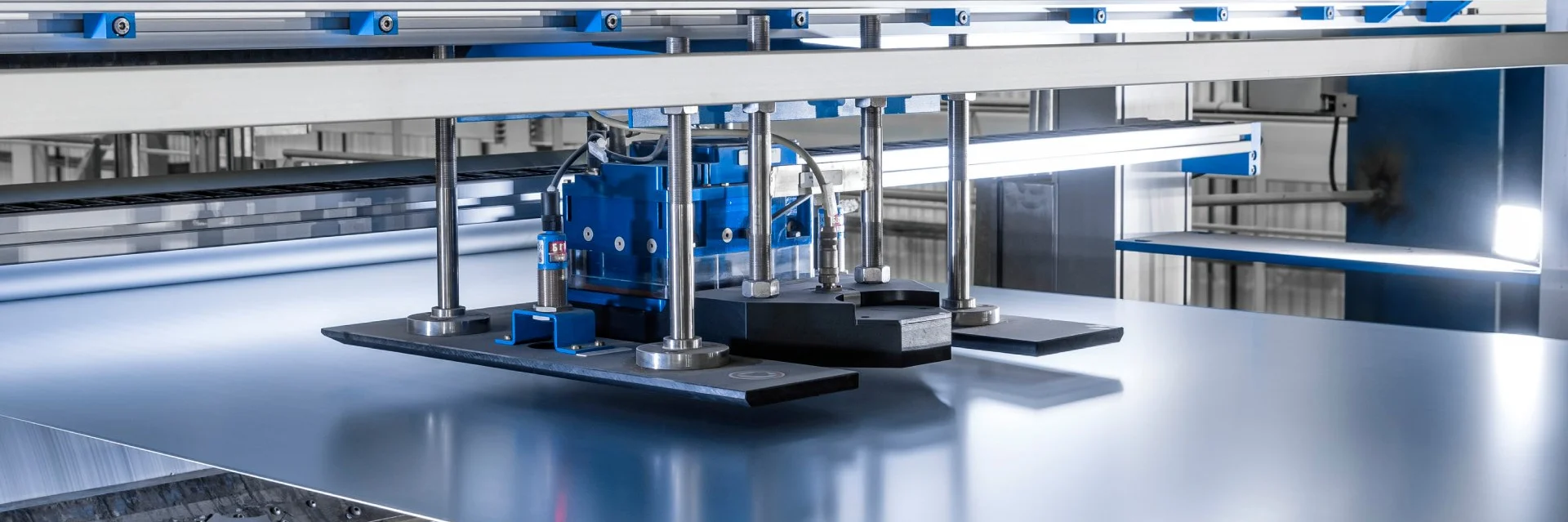

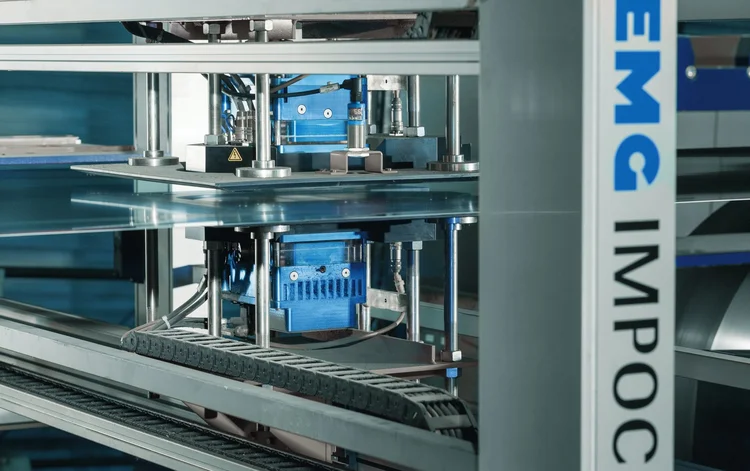

EMG IMPOC is a magnetic-inductive measuring system. Basically it is used for the automatic, non-destructive inline determination of the mechanical parameters tensile strength and yield strength of ferromagnetic steel strips. Accordingly our solution is used in the production of cold-rolled and surface-finished steel strips, e.g. in:
- Hot-dip galvanising lines
- Continuous annealing lines
- Tinning lines
- Continuous pickling lines*
- Further processing lines*
- Automotive industry
*on request
Trust the market leader with more than 70 successfully installed systems worldwide since 1997!
Technical details
Measuring range IMPOCpro:
- Strip thickness: 0.15 – 3.0 mm
- Strip width: > 500 mm
- Strip speed: 6 – 900 m/min
Measuring range Power IMPOC:
- Strip thickness: 0.15 – 6.0 mm
- Strip width: > 700 mm
- Strip speed: 6 – 600 m/min
Measuring accuracy:
- IMPOC value: +/- 5 % [A/m2]
- Tensile strength: +/- 5 % of measuring value [MPa]*
- Yield strength: +/- 10 % of measuring value [MPa]*
*this accuracy will be reached at 90 % of the measured values
Customer benefits
- Monitoring of material properties during production across the entire strip length and strip width
- Immediate and targeted process adjustment possible in the event of faulty material properties
- Improved strip quality and reduction in reinspection, scrapping, devaluation and complaints
- Insensitive to scale and metal-containing dust from mechanical processing
Application insights
Further EMG solutions
Perfect for this industry
EMG IMPOC reliably determines the material properties tensile strength and yield strength without destructive testing. Thanks to our many years of experience, we have a deep understanding of the process, which is essential for the implementation of customer-specific requirements. In general, I find the development of solutions in the team at EMG and in close exchange with our customers exciting, especially for complex activities and tasks.
Franziska KneiselProduct Manager
