Continuous measurement of production-relevant surface parameters
EMG SORM®
Ensure the highest product quality, avoid rejects and reduce complaints in the long term.
Measuring principle

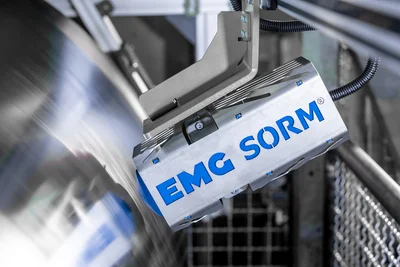

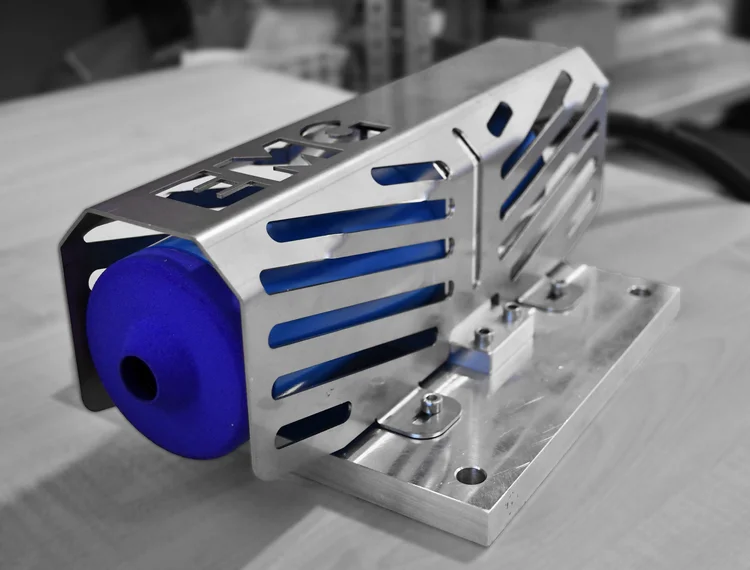

EMG SORM® is the inline measuring system for recording roughness and waviness parameters on running strips. An important quality feature of uncoated and surface-finished strips are roughness characteristics.
LED-based confocal-chromatic measurement:
White light is dispersed by a chromatic lens to focus different wavelengths at distinct distances, where the reflected wavelength from a surface precisely indicates its position via spectrometer analysis.
Technical details
- Measurement parameters:
- Ra from 0,3 µm
- RPc up to 200 cm^-1

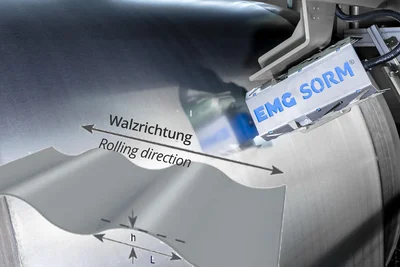

- Wsa from 0,1 µm
- Measuring accuracy*:

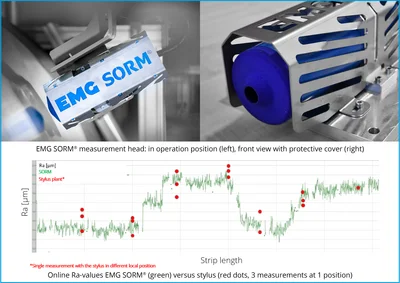

- Ra/Wsa: +/- 15 % compared to tactile measurement (for 85 % of all values)
- RPc: +/- 20 % compared to tactile measurement (for 80 % of all values)
- Light source: LED (no laser required)
- Working distance: 25 mm
- Working distance tolerance without focussing unit: 1.5 mm
- Necessary space in plant: approx. 500 mm in production direction
- Determination of roughness parameters: acc. to DIN EN 10049 and SEP 1941
- Measuring range (Strip thickness): 2.5 mm (beyond that focus unit recommended)
* based on experience gained in online testing
Customer benefits
- Ensuring product quality
- Control and optimisation of the skin pass and/or rolling process
- Cost reduction through optimisation of the roll service life
- Reduction of complaints due to early detection of deviations from the required roughness range
- Reduction of scrap during a subsequent check on the rewinding line
- Stable forming process due to constant roughness parameters
- Excellent painting results due to homogeneous surface roughness
- Savings compared to manual stylus measurement
