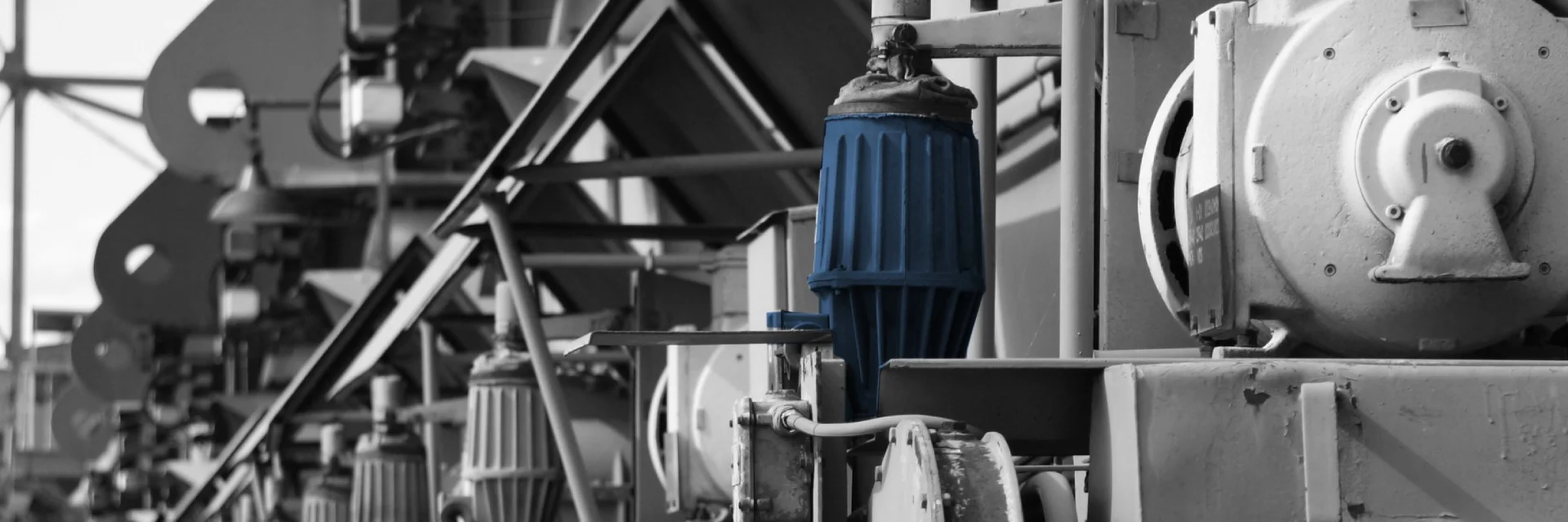

Electrohydraulic thruster: Proven, robust lifting equipment
EMG ELHY®
Operating principle
The EMG ELHY® units are available - with the same functional principle, the same internal design and the same external shape - in three different series The motor housing contains the stator of the drive motor, which is designed as a three-phase asynchronous squirrel-cage motor. The engine is running in the operating fluid.
The electrical connection is made via the terminal box, which tightly seals the motor housing. The feet cast onto the motor housing are used to fix the EMG ELHY® unit. The impeller of the pump is mounted on the motor shaft. Above the impeller is the guide cylinder with the axially movable piston. The inside of the unit is filled with hydraulic medium up to the level of the filler opening.
Customer benefits
- Proven, robust lifting equipment for very demanding applications, such as steelworks and mining
- Individually suitable configuration for every application
- Motor under transformer oil: fewer seals - less wear. Strong protection up to IP68 (underwater operation)
- Internal position indicator in DIN, TGL with adaptations to regional standards, e.g. inch
- CSA certification available
- Ambient temperatures from -45 °C to +80 °C
- All units 100% tested and recorded in function and endurance run
Perfect for these industries
The ELDRO® thruster has existed as a registered trademark since 1931 and has therefore been successful on the market for more than 90 years - an insanely successful product!
EMG ELDRO® meets all requirements of our customers, increases the safety of their brakes and is 100% tested.
With this pretention EMG sets the industry standard for electrohydraulic brake thrusters.
