EMG hotCAM - Technical Details

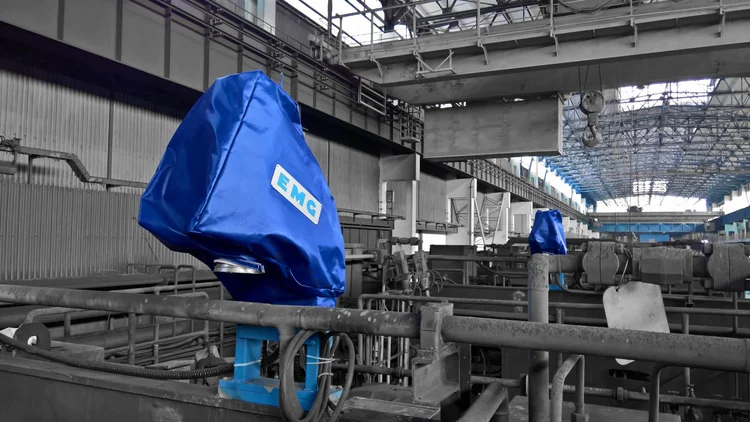

EMG hotCAM Application
  • Environmental temperature: up to 100 °C (depends on the cooling air temperature)
  • Minimum strip temperature: 820 °C (lower temperatures on request)
  • Cooling / Air flushing: compressed air (approx. 500 l/min; > 5 bar)
  • Accuracy strip width measurement: up to +/- 1.5 mm
  • Accuracy position measurement: up to +/- 1.5 mm
  • Interface to PLC: Profibus/Ethernet/Profinet (others on request)
  • Measuring rate: 50 Hz - 60 Hz
  • Scalability (no. of measuring sets): 1-n
  • Measuring distance: approx. 4-8 m (mounted on top of the roll stand)
